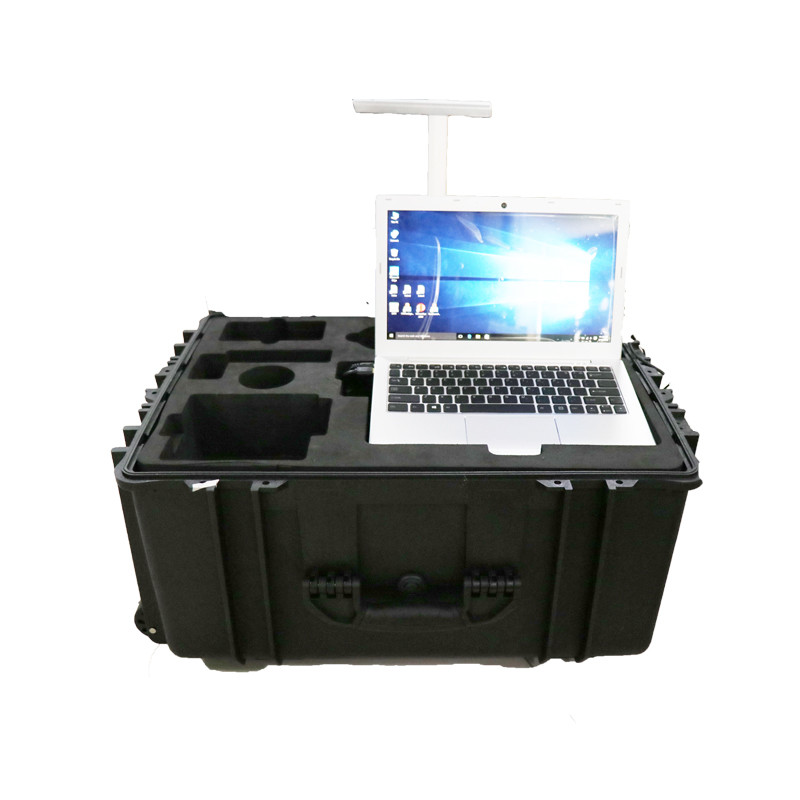

| type | detail | describe | | shell | canning material | PP | | external dimension | Case Size:607*508*355mm | | weight | 30kg | | NoteBook | screen size | 13.3" 1920*1080 IPS | | specification | 13.3" I5 WIN10 pro, 8G+128G ,1920*1080 IPS ,CAM:1.3MP,Speaker: 8R 1W*2,6000mah,WIFI+BT+Keyboard,I/0 Port:1* HDMI ,1* Type-C port,2 * USB 3.0,1* Card reader MMC/SD/MS/XD ,1 * 3.5mm Earphone Jack,1 x DC-IN jack,Size:351*233*20mm,Weight 1.4kg, DC19V/3A | | battery | 6000mah | | the duration of flight | 4-6H Above | | System hardware configuration | | type | function | describe | | Digital Camera | support | C920E 5V/USB2.0 Data transfer and power supply,Cable Length=1.8M,with MIC/AF Resolution: 3MP/6MP/15MP, Weight 162g,Black color, Size:70*47*94mm | | Miniature tripod | Tri-Port,Height=120mm ,weight=43g,Black color, Rotation 360 degrees | | 442 Fingeprint Scanner | support | Suprema G10 4-4-2, 5V/ Data transfer and power supply, 20 frame/S,Capture speed within 15S
4-4-2 Sensor area:89 x 80 mm Image comply with FBI IAFIS Appendix F,build in speaker, Windows/Linux,1.8kg | | Dual-Eye Iris | support | Iristek BK2121 5V/ Data transfer and power supply, Max currency 430MAH,use range 1cm/ Image comply with ISO19794-6(2005 & 2011),(640×480pix, Level 8 grey ),fully support K1 K2 K3 K7,IP54*,Size: 200x145x72mm | | File Scanner | support | S1000P 5V/Data transfer and power supply,10MP(3648*2736)with AF/LED light,Frame rate:30Fps(VGA),4Fps(full resolution),Picture size A4 in PG/TIF/BMP/PNG format, Support:Windows xp/Vista/WIN7/WIN8/WIN10 Size:264*90*95mm | | Signature Board | support | ESP 370U /5V/USB Data transfer and power supply 3.7 inch,display area:76.78 x 39.58mm Size:154.5 × 120 ×9 mm Weight:157g,Accuracy 0.2mm/ Resolution:0.01mm/dot, Response time 16ms,support Win XP,XPE, Vista or Win7 | | 4G | support | HUAWEI 4G Full band, USB interface, Driver free | | built-in power supply | support | 7-9H Above/ 7.4V/30000mAH Cell:9059156 ,Size:170.5*73.4*58mm Cable L=200mm 60A Protection board | | network connections | | type | function | describe | | WIFI | support | 802.11 b/g/n | | BT | support | Bluetooth4.0 | | connector | | type | detail | describe | | configuration | connector | 1* HDMI ,1* Type-C port,2 * USB 3.0,1* Card reader MMC/SD/MS/XD ,1 * 3.5mm Earphone Jack,1 x DC-IN jack | | standard fittings | | type | detail | describe | | power adapter | standard configuration | 220V Input,3Pin, 24V/6A DC Output | | software configuration | | type | detail | describe | | operating system | WIN10 | WIN 10 Pro | |
